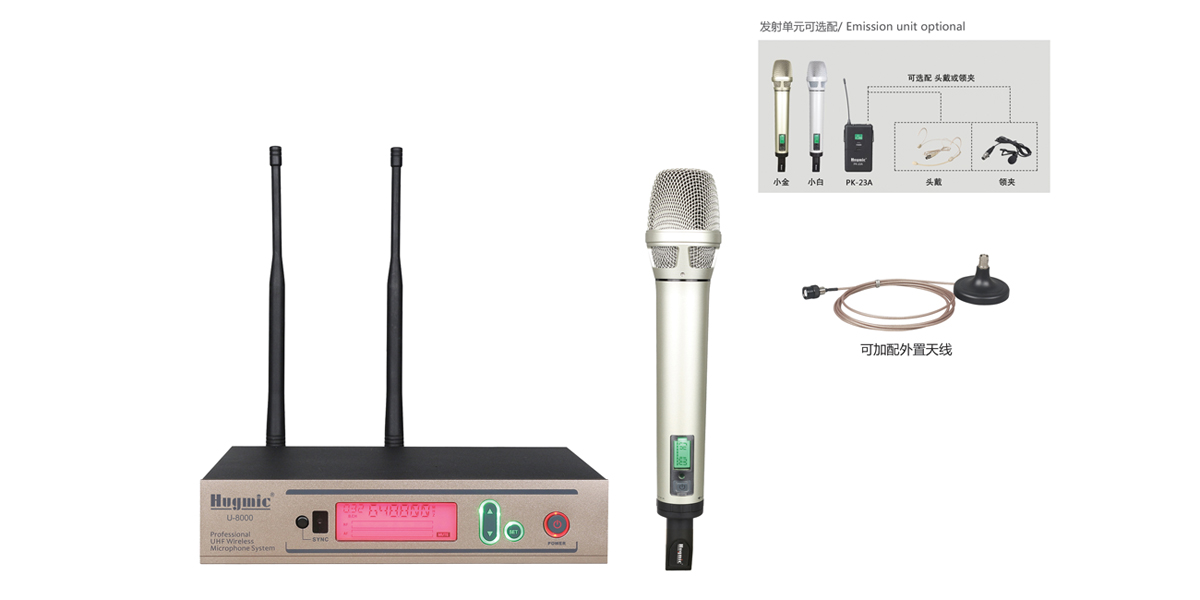

U-8000为专业演唱而设计,强调声音的饱和度和清晰度。
其内置有圆型滤音装置可有效抑制风噪和呼吸爆音,均匀
的心形指向模式能够有效地增强主声源,同时最大限度地
抑制背景噪音。无论是在室内还是户外演唱或演讲,会议
室和多功能厅等,都是专业人士始终如一的选择。
U-8000 is designed for professional singing, emphasizing sound
saturation and clarity. Its built-in circular sound filter can effectively
suppress wind noise and breathing explosion, and the uniform
heart-shaped pointing mode can effectively enhance the main sound
source, while minimizing background noise. Whether singing or
speaking indoors or outdoors, conference rooms and multi-function
halls are the consistent choice of professionals.
系统指标 System specifications :
频率范围 Frequency range: 640-690MHz
调制方式 Modulation mode: FM
可调范围 Frequency interval: 50MHz
信道数目 Channels: 200
信道间隔 Channel interval: 250KHz
频率稳定度 Frequency stability:±0.005%
动态范围 Dynamic range:100dB
最大频偏 Max frequency deviation
音频响应 Frequency response: 80Hz-18KHz(±3dB)
综合信噪比 SNR:>105 dB
综合失真 Distortion: ≤0.5%
工作温度 Working temperature: -10℃ ~+40℃
接收机指标 Receiver Indicators:
接收机方式Pattern:一次变频超外差
super heterodyne twice frequency conversion
中频频率 IF-FRE:
第一中频 First :110MHz, second 10.7MHz
无线接口 wireless interface :BNC/50Ω
灵敏度 sensitivity :12dBμV(80DbS/N)
灵敏度调节范围 sensitivity range:12-32 dBμV
杂散抑制 Stray rejection:>75dB
最大输出电平Max output level :+10Dbv
发射器指标 Launcher Indicators:
无线程式:佩挂发射器采用1/4波长鞭状天线,
手持麦克风内置螺旋天线
Wireless pattern:The 1/4 transmitter Peigua wave whip
antenna, handheld microphone built-in spiral antenna
输出功率 Output power:
高功率High power30mW; 低功率Low power 3mW
杂散抑制 Stray rejection:-60dB
供电 Power supply :两节AA电池 2 AA batteries
使用时间 Duration time :
30mW时大于8个小时 >8 hours(30mW),
3mW时大于12小时 >12hours(3mW)
